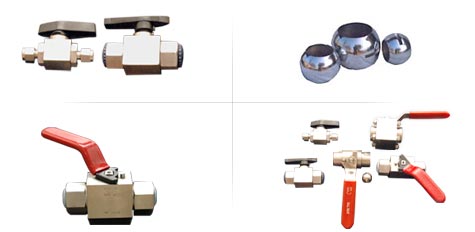

| Aura ball valves have a
proven track record in various industries worldwide. Manufactured
in our state of the art ISO 9001: 2000 certified
manufacturing unit under stringent QA standards, these valves have
proved to be a high quality reasonably priced product.
Standard valves are in either 316L or Brass bodies and 316 SS Ball
and trim. Aura offers a wide range of optional materials including
Hastalloy, Monel, Duplex 2205 etc.
Current range of valves cover sizes of 1/4" to 1" with
threaded, butt weld, socket weld and compression tube end connection
|
| |
- SINGLE PIECE REDUCED PORT BALL VALVES
Machined from bar stock , the body is a single piece. Standard
sizes are 1/4" 3/8" and 1/2" . End connections
are threaded NPT (F). Available in 316L and Brass bodies. Pressure
rated for 800 Psi
- TWO PIECE FULL PORT BALL VALVES
Body consists of two sections screwed together. Standard sizes
are 1/4", 3/8", 1/2", 3/4" and 1". End
connections are threaded NPT (F). Pressure rating is 2,000 Psi.
Available with 316L and Brass bodies
- THREE PIECE FULL PORT BALL VALVES.
The unit consists of a central body block with end flanges bolted
to the main body. The end connections could be either threaded
NPT (F), Socket Weld or Butt Weld. Available in 1/2" 3/4"
and 1" sizes . Standard body material is 316L. Pressure rating
is 2,000 Psi.
- MINIATURE INSTRUMENT BALL VALVES
Compact design with a molded nylon handle. Body material 316 SS.
End connections are double ferrule compression tube ends. Standard
sizes are 1/4", 3/8" and 1/2" OD
|
